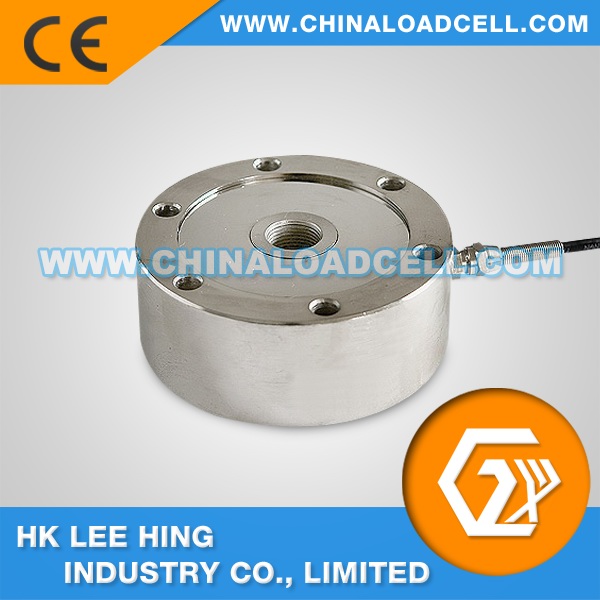

CFBLY Spoke Pull Pressure Load Cell

Electronic Components > Active Components > Sensors
Place of Origin: China (Mainland)
Item No.: CFBLY
Rated Output: 2.0 ± 0.05 mV/V
Product Description: Sensor uses Spoke elastomer structure, characteristic of anti-bias load, high precision.
Inquiry

Product introduction

Product Description
Category: Pull Pressure Load Cell
Range: Min 200kg; Max 100t.

Dimensions in millimetres

RANGE	ΦA	ΦB	ΦC	M	H	H1	H2	ΦD	ΦC
200 ~ 700 kg	88	72	22	M12 × 1.75	34	31	7.2	8 - Φ11	8 - Φ7
1 ~ 5 t	105	89	32	M16 × 1.5	37	34	7.2	8 - Φ11	8 - Φ7
10 ~ 20 t	120.6	101.8	39	M32 × 1.5	53.5	41	10.5	8 - Φ14	8 - Φ9
30 t	141	116.8	50.4	M40 × 1.5	57.2	50.8	11	8 - Φ18	8 - Φ11

RANGE	ΦA	ΦB	ΦC	M	H	H2	ΦD	ΦD1
40 t ~ 60 t	208	174	95	M64 × 3	70	15	16 - Φ20	16 - Φ13
80 t ~ 100 t	280	230	120	M76 × 3	90	20	16 - Φ30	16 - Φ17

Specification	Unit	Value
Output Sensitivity	m V / V	2.0 ± 0.05
Non-linearity	≤ % F.S	± 0.03
Hysteresis	≤ % F.S	± 0.03
Repeatability	≤ % F.S	± 0.03
Creep	≤ % F.S / 30 min	± 0.03
Zero Balance	≤ % F.S	± 1
Temp Effect on Zero	≤ % F.S / 10 ℃	± 0.03
Temp Effect on Span	≤ % F.S / 10 ℃	± 0.03
Use Temperature	℃	-20 ℃ ~ + 80 ℃
Input Resistance	Ω	750 ± 20 Ω
Output Resistance	Ω	700 ± 5 Ω
Safe Overload	≤ % F.S	150 % F.S
Insulation Resistance	M Ω	≥ 5000 M Ω ( 50 VDC )
Excitation Voltage	V	10 V ~ 15 V
